Open App - JSON parsing

[madras]

Hi All,

I have created an endpoint called “trip” in the bubble Open App (accessible to everyone):

Bubble Editor - Forum_app2

I will be sending a JSON of the following format, from zapier:
{
“flight”:{

  "arrival":{
     "name":"Newark Liberty International Airport",
     "local-date-time":"2012-02-19T21:43:00",
  },

  "provider-details":{
     "name":"Continental Airlines"
  },

  "details":{
     "@number":"1573",
  },

  "departure":{
     "name":"San Francisco International Airport",
     "local-date-time":"2012-02-19T13:20:00",
  },
  "record-locator":"NJS8YH",

},
}

In bubble, I created a thing called “Flight”, which needs to be populated based on the information available in the JSON payload.

How do I define the keys for the bubble endpoint “trip”, so that the linked workflow “Create a new flight” populates the database with the correct information?

The mapping of the fields in thing “Flight” to the JSON keys is as follows:

• Airline = flight → provider-details → name

• Flight Number = flight → details → @number

• Departure Airport = flight → departure → name

• Departure Date = flight–> departure → local-date-time

• Arrival Airport = flight → arrival → name

• Arrival Date = flight–> arrival → local-date-time

• Booking Reference = flight–> record-locator

I’m having difficulty mapping the JSON keys to the bubble endpoint “trip” so that the related workflow for creating a flight works properly.

If someone can help me get started on the mapping information for endpoint and the related workflow, that would be great !

Thanks!

[emmanuel]

That’s what the ‘Add a new parameter’ button is for. Click on this and you’ll be able to define the keys for the JSON you’re sending.

[NigelG]

Yes, you will need to do the work on the Zapier end to send through the parameters in this case.

[madras]

Hi Nigel & Emmanuel,

Thanks for your feedback and help!

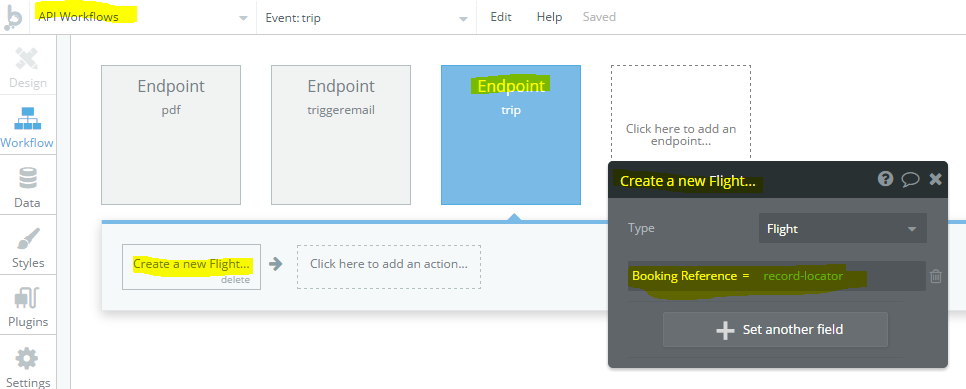

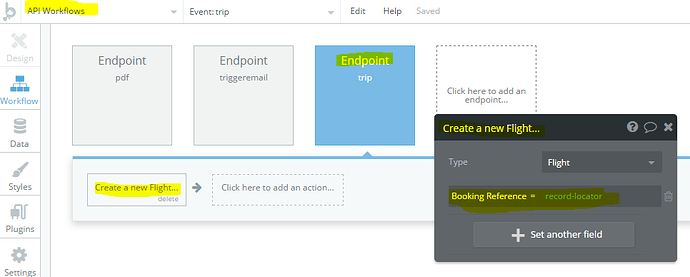

I did as Emmanuel suggested:

1. Used “Add a new parameter” to add just one parameter, record-locator from the JSON payload.

2. Updated the associated workflow to map this parameter to a field in the thing Flight.

After setting this bubble endpoint “trip”, I posted the JSON payload to this bubble endpoint from Zapier.

I get the error below.

My guess is that the parameter record-locator is nested, as in, one needs to work your way down the JSON tree, like so: Go to Flight node then get value for record-locator branch.

I do not think I have properly defined the parameter record-locator in the endpoint “trip”.

How do I go about doing this correctly? What is the syntax to be used?

Or is there a bubble limitation? Can bubble only accept flat (one level) JSON payloads?

Any help in pointing me in the right direction would be much appreciated!

Thanks!

[ramkhi]

I am interested in the answer to this question as well.
“Add a new Parameter” in the API endpoint definition, does not seem to pick up nested entries in the JSON payload. Bubble experts please help.

[emmanuel]

It does pick that up, parameters have to be flattened for now. When we say we don’t lose info from JSON objects it’s for responses when using the API connector, a totally different context.
